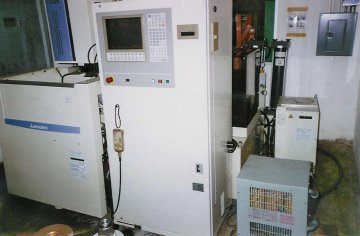

MITSUBISHI FX-10K
Notes:
  • MAX. WORKPIECE DIMENSIONS: 31.2" X 22.6" X 8.45"
  • MAX. WEIGHT OF WORKPIECE: 1100 #
  • TABLE - 24.8" X 20.8"
  • TRAVELS:
  • X: 13.75"
  • Y: 9.82"
  • Z: 8.65"
  • WIRE:
  • USABLE WIRE DIAMETER - .004" TO .012"
  • MAX WIRE FEED (m/min): 15
  • U & V - +/- 1.25"
  • MAXIMUM TAPER ANGLE - 15 DEG @ 4"
  • TANK: 132 GALLONS
  • AUTOMATIC WIRE THREADER
  • CHILLER

[View More]

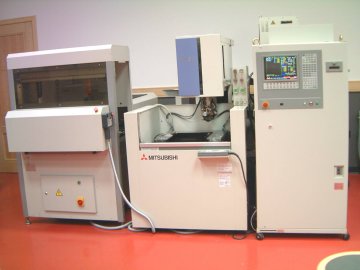

MITSUBISHI FX-10
Notes:
  • TABLE - 24.8" X 20.8"
  • MAXIMUM LOAD - 1168 #
  • WIRE:
  • USABLE WIRE DIAMETER - .004" TO .01"
  • TRAVELS:
  • X - 13.77"
  • Y - 9.84"
  • Z - 8.66"
  • U & V - +/- 1.25"
  • MAXIMUM TAPER ANGLE - 15 DEG @ 4"
  • TANK: 60 GALLONS
  • AUTOMATIC WIRE THREADER
  • CHILLER

[View More]
